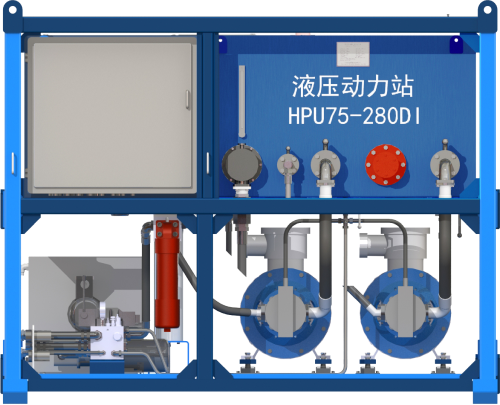

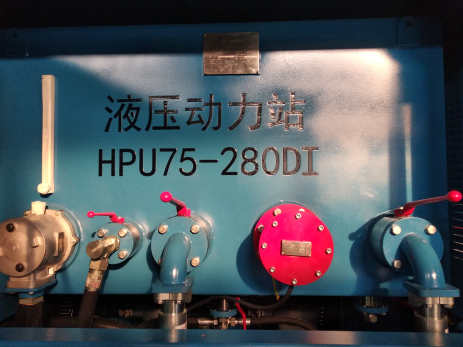

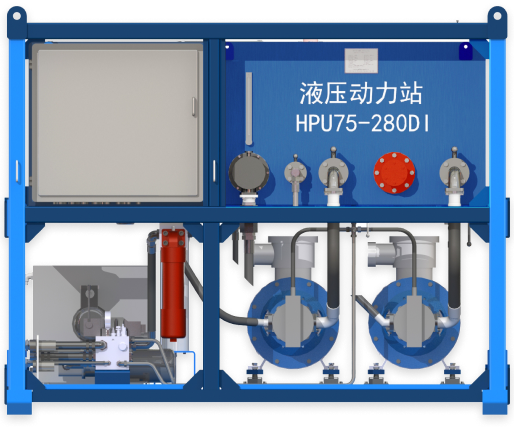

HPU75-280DI

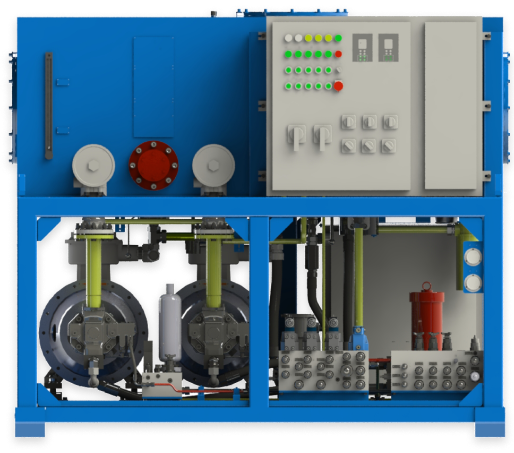

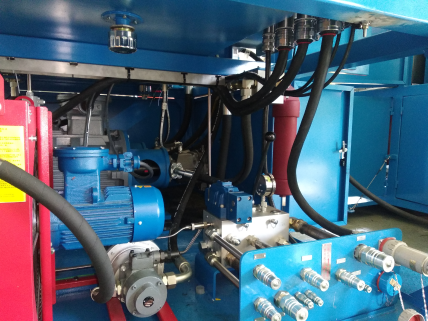

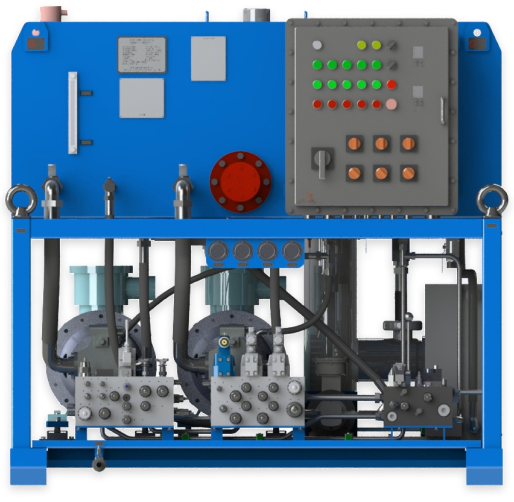

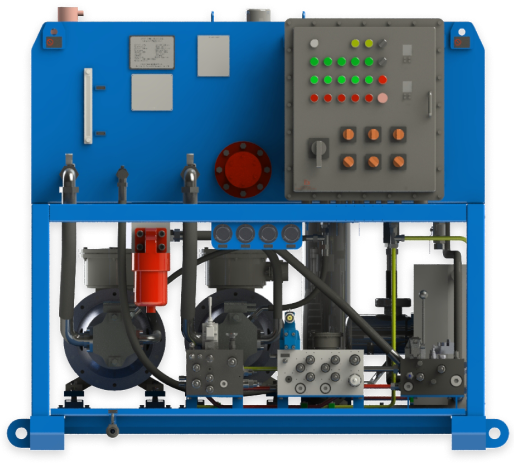

Combined Hydraulic Power Unit is an advanced hydraulic power station designed for powering various hydraulic driven equipment on drilling platforms and land rigs. JJC combined HPU applying patented breathing reservoir creates a micro positive pressure in full closed tank. Combined together unloading overflow constant pressure control, power control and flow control to achieve high control stiffness, fast dynamic response and energy saving & environmental protection. The whole product line is equipped with oil temperature control system, oil condition monitoring system and alarm system, remote control / local control switching. Remote pressure and flow monitoring function is optional.

Product File Download
Highlights

High Reliability

Patented technology of fully isolated tank and breathing reservoir design, effectively ensures the purity of the hydraulic oil and significantly extends the service life of hydraulic components. Electrical control and hydraulic system components are of top-of-the-line quality, with lower failure rat

Fast Dynamic Response

Patented hydraulic control system through combined together unloading overflow constant pressure control, power control and flow control to achieve fast dynamic response, high control stiffness, which helps reduce the energy consumption and low heat production in standby mode.

Energy Conservation and Environment Protection

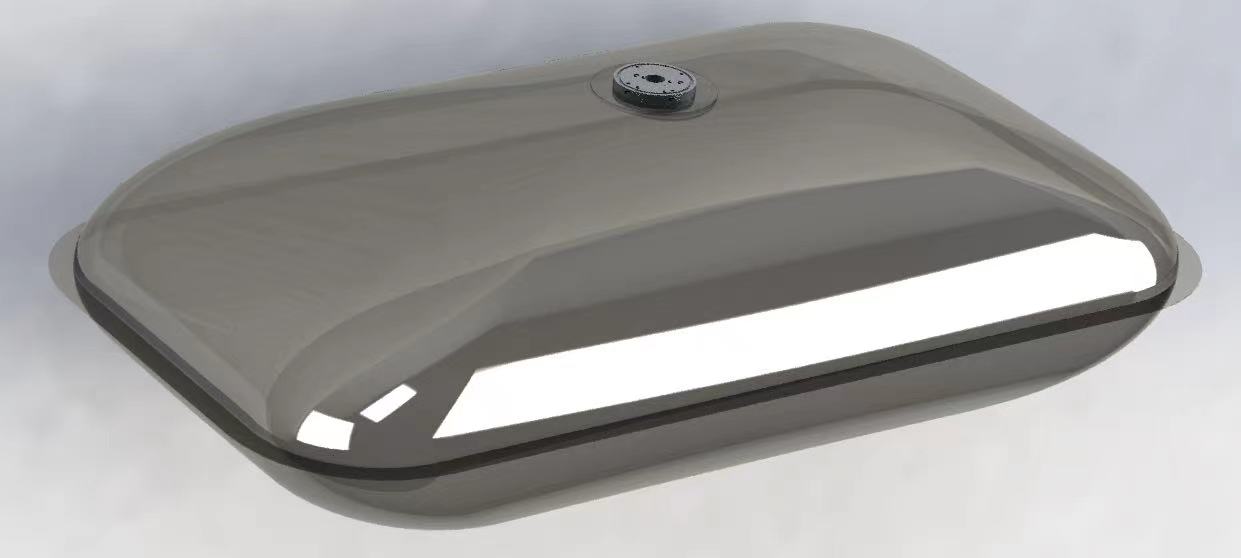

Patented breathing reservoir keeps the hydraulic oil isolated away from the air outside, avoids pollution and oxidation caused by dust and water in the ambient air, greatly extends the replacement cycle and service life of hydraulic oil, hydraulic control system ensures low temperature rise of hydra

Low Leakage

The system can adapt temperature to make the oil temperature stable while still ensuring the dynamic response speed and control stiffness. The system is equipped with imported control valve, joints and pipeline to reduce the leakage.

High Cleanness

In the working process of the hydraulic power unit, through the contraction and expansion of the breathing reservoir in the oil tank, the pressure inside and outside the oil tank is always balanced, and the hydraulic oil in the oil tank is always isolated from the air outside, so as to effectively e

Expandability

Modularized and compact design, "Rig Total Integrated Control" port ready for new-build rigs and customized rig upgrade request. Provides a complete line of models suitable for different rigs and configurations, and customized design available upon request.

Techincal Specifications
Model
HPU75-280DI
Configuration
The unit consists of main body and distribution manifold, which has 10 outlets to provide power for the operation of iron roughneck, drilling rig slip, hydraulic winch, hydraulic tongs, BOP transport, buffer manipulator, hydraulic mud box, derrick buffer cylinder, hydraulic cat head, etc. Suitable for Outdoor work.
Rated Pressure
16/21MPa (2300psi/3000psi)
Rated Flow
280LPM (75GPM)
Motor Power
75kW
Electrical Power
380V/50Hz | 460V/60Hz
Dimensions
（W×H×L）
3,000mm × 2,000mm × 2,400mm
(118.1 ″ ×78.7″ ×94.5″)
Weight
5,500kg (12,125Ibs)
